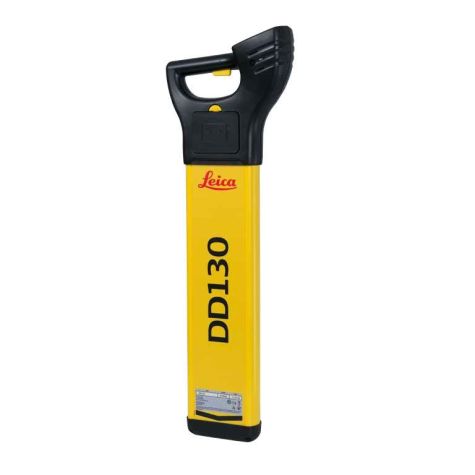

Leica DD130 Pipe & Cable Locator

CODE: 45-DIGISYSTEM130 U.O.M: Each
Leica DD130 avoidance utility locator reveals the utilities below your feet.
$0.00
In stock
CODE
45-DIGISYSTEM130
Add to List

Avoiding underground cables and pipes is a major concern on construction sites. Therefore detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage risks and any subsequent costs. Using a pipe and cable locator to estimate the depth of the underground infrastructure on your construction site improves utility locating accuracy and data range.

The Leica DD130 cable locator feature advanced automatic controls making the DD130 easy-to-use. Requiring minimal user experience the DD130 is one of the easiest to operate pipe detectors on the market.

Avoiding underground cables and pipes is a major concern on construction sites. Therefore, detecting the position of buried cables and pipes before excavation work can help prevent operator injury, asset damage and any subsequent costs.

Use the DD130 cable locators in conjunction with a DA220 signal transmitter or range of accessories to achieve improved accuracy and application scope.

The robust range Leica pipe locators are engineered for ease of use. They enable users to simply press the trigger and start locating. With automatic pinpointing there is no need for you to manually adjust sensitivity.< This reduces the potential for human error and enables easier and more efficient cable and pipe locating.

Technical Specifications



  • Power:50Hz model or 60Hz
  • Radio: 15kHz to 60kHz
  • Transmitter Modes: 32.768 (33) kHz
  • Auto: Power, Radio, 33kHz 8.192 (8) kHz 32.768, (33) kHz, 8.192 (8) kHz, 512 Hz, 640 Hz
  • Depth Range: Line 0.3m to 3m / 1ft to 10 ft, sonde 0.3m to 3m / 1ft to 10 ft
  • Depth Accuracy: 10%
  • Environmental Standard: IP54
  •

    Kit Includes

  • DD130 Locator (50Hz), Alkaline
  • DA220, 1 Watt Signal Transmitter with Earth Spike, Crocodile clip connector & cables
  • Transmitter 100mm(5” Signal Clamp) 2m
  • Locator System Carry Bag
  • Kit Weight: approximately 9.9kg
  •

    More Information
    CODE 45-DIGISYSTEM130
    U.O.M Each
