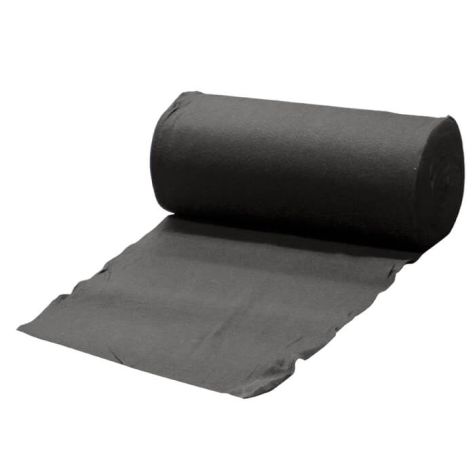

mastaTEX™ Filtafabric 4m x 100m

CODE: 30-4GF U.O.M: Each
mastaTEX FiltaFabric FW grade, 4m x 100m roll ideal for behind retaining walls, drainage, filtration, soil stockpile as a temporary erosion control and subsoil filter.
$304.00
In stock
CODE
30-4GF
Add to List

mastaTEX FiltaFab is a high-quality staple fibre geotextile filter fabric, designed for landscaping and small civil works. Due to the 3 dimensional structure, it provides an effective drainage material both through the pores or within the fabric itself. mastaTEX FiltaFab is most commonly used as a filtration layer in trenches, as a pipe and aggregate wrap or behind retaining walls.

Applications:

  • Temporary erosion control
  • Temporary drain silt protection
  • Soil stockpiles
  • Behind Retaining Walls
  • Subsoil Filter
  • Drainage
  • Filtration
  • mastaTEX FiltaFab is not approved to be used on road or railways due to the mechanical properties of a short fiber material.

    INDEX PROPERTIES TEST METHOD UNITS 30-06GF 30-1GF 30-2GF-50 30-2GF 30-4GF
    Material - - UV Stabilised PP UV Stabilised PP UV Stabilised PP UV Stabilised PP UV Stabilised PP
    Wide Strip Tensile Strength JAS3706.2A kN/m 6.5 6.5 6.5 6.5 6.5
    Grab Tensile Strength AS3706.2B N 400 400 400 400 400
    Pore Size AS3706.7 mm 0.15 0.15 0.15 0.15 0.15
    Nominal Flow Rate AS3706.9 L/m²/s >240 >240 >240 >240 >240
    G Rating Austroads - 1500 1500 1500 1500 1500
    DIMENSIONS
    Width - m 0.6 1 2 2 4
    Length - m 50 50 50 100 100
    Roll Diameter - mm

    330

    330 400 500 500

    *Specifications as per manufacturer.

    More Information
    CODE 30-4GF
    Brand GEOmasta
    Colour White
    Length 100 m
    Width 4 m
    U.O.M Each
